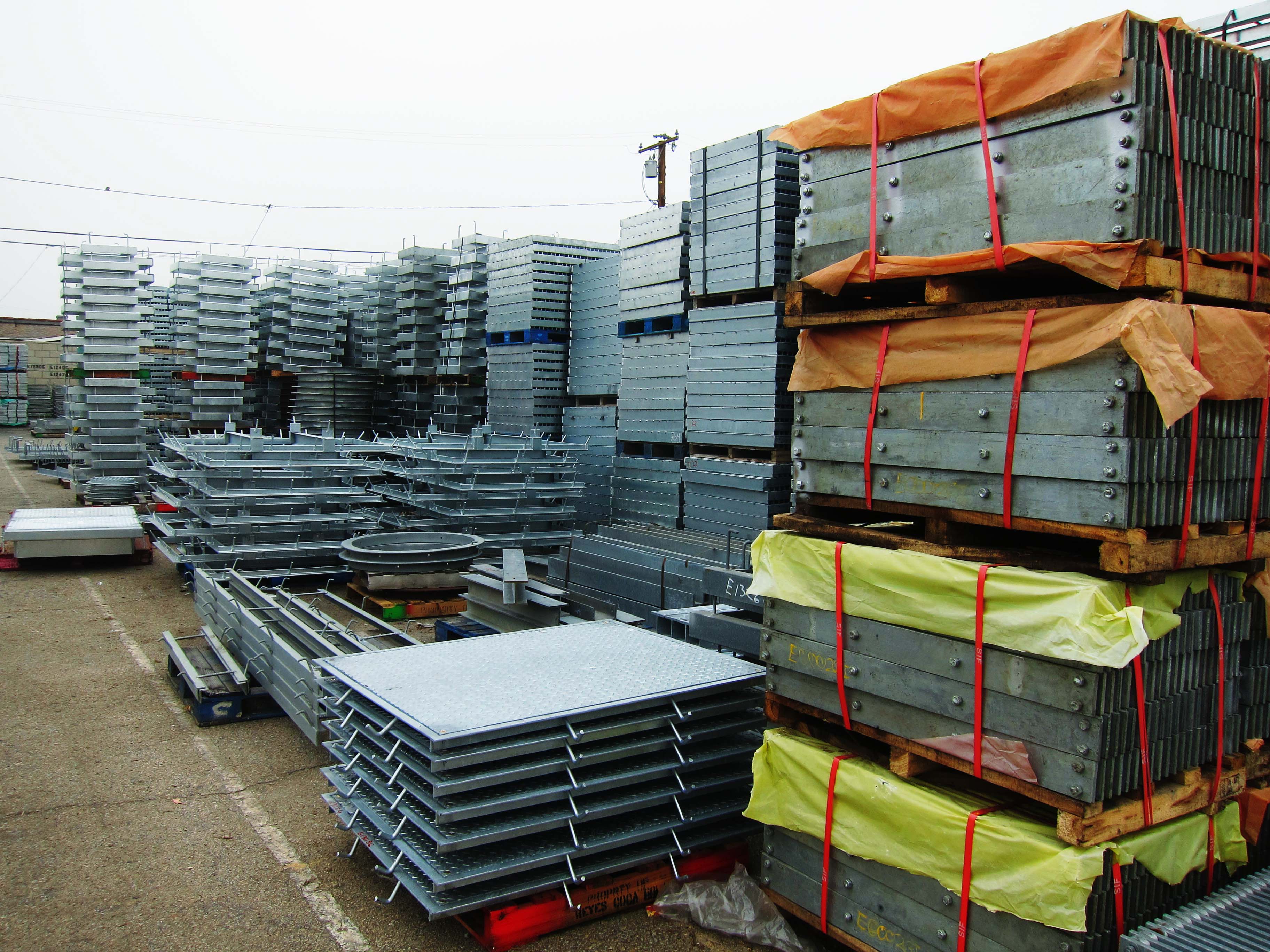

Steel Frames and Grates Cal-Trans Approved

We are built on our employees and reputation. We show our integrity through quality products, reputation, and personnel.

Drawings Caltrans
I.D. #								Drawing
E2020 24 X 40 GRATE CALTRANS
E2021 24 X 40 ADA GRATE CALTRANS
E2023G 24 X 40 TR. COVER (D-15) CALTRANS
E2030G 18 X 40 FRAME CALTRANS
E2040 18-9 GRATE CALTRANS
E2050 18-9X GRATE CALTRANS
E2055 18-10 GRATE CALTRANS
E2060 24 x 40 FRAME CALTRANS
E2062 DOUBLE FRAME CALTRANS
E2065 GDO FRAME CALTRANS
E2066 GDO FACE ANGLE W/TRASH TEETH CALTRANS
E2070 24-9 GRATE CALTRANS
E2080 24-12 GRATE CALTRANS
E2090G 24-12X GRATE CALTRANS
E3018 18-R GRATE CALTRANS
E3020 18-RX GRATE CALTRANS
E3030 24-RX GRATE CALTRANS
E3032 24-R GRATE CALTRANS
E3035 30-RX GRATE CALTRANS
E3037 30-R GRATE CALTRANS
E3040 36-RX GRATE CALTRANS
E3050 36-R GRATE CALTRANS
E3060 48-RX GRATE CALTRANS
E3070 48-R GRATE CALTRANS
E3102 OMP FRAME CALTRANS
E3103 OCP OMP COVER CALTRANS
E4040G 3/4" RD PROTECTION BAR CALTRANS
E4095G W5X19 SUPPORT BEAM CALTRANS
